G500D
DEADLOCK
Suitable for sliding narrow style aluminum, steel & wood (for 1 point latch only) doors
in commercial, industrial & institutional buildings
A solid dead bolt resists the swinging doors opening or hook bolt resists the swinging
or sliding doors opening
The blocking system, located in the center of the lock, provides high security against
forcing attempts
Utilizes a laminated steel bolt, activated by a pivot mechanism to security
180° turn key or thumb turn projects or retracts the counterbalanced bolt. Key can be
removed only when bolt is locked or unlocked position
Lock supports any standard 1" (25.4 mm) or 1-1/8” (29.8 mm) length and 1-5/32" (29.4
mm) diameter mortise cylinder. Lock supports cylinder from either or both sides

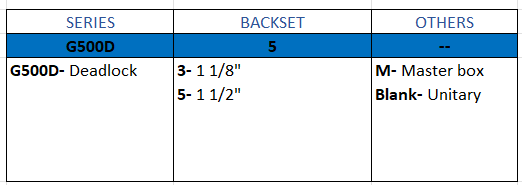

Backset options: 1-1/8" (28.6 mm) & 1-1/2” (38.1 mm)
Compatible with A500 header and threshold bolts.
DEADLOCK
Suitable for sliding narrow style aluminum, steel & wood (for 1 point latch only) doors
in commercial, industrial & institutional buildings
A solid dead bolt resists the swinging doors opening or hook bolt resists the swinging
or sliding doors opening
The blocking system, located in the center of the lock, provides high security against
forcing attempts
Utilizes a laminated steel bolt, activated by a pivot mechanism to security
180° turn key or thumb turn projects or retracts the counterbalanced bolt. Key can be
removed only when bolt is locked or unlocked position
Lock supports any standard 1" (25.4 mm) or 1-1/8” (29.8 mm) length and 1-5/32" (29.4
mm) diameter mortise cylinder. Lock supports cylinder from either or both sides
Backset options: 1-1/8" (28.6 mm) & 1-1/2” (38.1 mm)
Compatible with A500 header and threshold bolts.
DEADLOCK
Suitable for sliding narrow style aluminum, steel & wood (for 1 point latch only) doors
in commercial, industrial & institutional buildings
A solid dead bolt resists the swinging doors opening or hook bolt resists the swinging
or sliding doors opening
The blocking system, located in the center of the lock, provides high security against
forcing attempts
Utilizes a laminated steel bolt, activated by a pivot mechanism to security
180° turn key or thumb turn projects or retracts the counterbalanced bolt. Key can be
removed only when bolt is locked or unlocked position
Lock supports any standard 1" (25.4 mm) or 1-1/8” (29.8 mm) length and 1-5/32" (29.4
mm) diameter mortise cylinder. Lock supports cylinder from either or both sides
Backset options: 1-1/8" (28.6 mm) & 1-1/2” (38.1 mm)
Compatible with A500 header and threshold bolts.

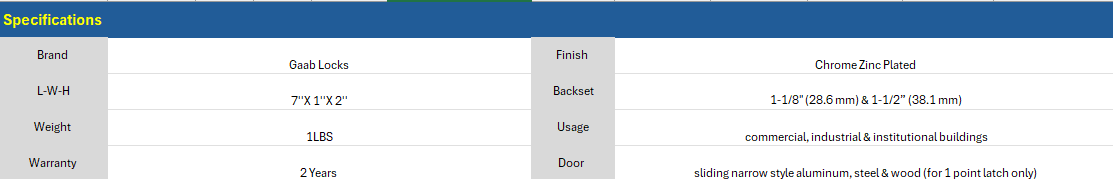

SPECIFICATIONS
The Gaab Locks G500D Deadlock offers robust security with its heavy-duty construction and advanced locking mechanism, ideal for both residential and commercial use. Designed for durability and reliability, this deadlock ensures maximum protection against forced entry. Easy to install, it provides peace of mind with superior performance and sleek design.
Spec Sheet
